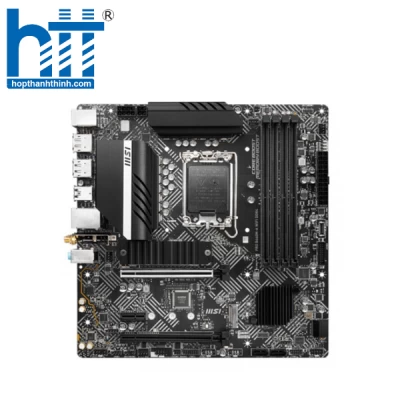

Sản phẩm

Bo mạch chủ

Tên Hãng

MSI

Model

PRO B660M-A DDR4

CPU hỗ trợ

Intel

Chipset

B660

RAM hỗ trợ

4 x DIMM SLOTS (tối đa 128GB)

4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC) MHz

Khe cắm mở rộng

2 x PCI-E X16, 1 x PCI-E X1

Ổ cứng hỗ trợ

4 x SATAIII, 2 x M.2 SLOT

Cổng kết nối (Internal)

1(Gen 1, Type C), 2(Gen 1, Type A) x USB 3.2 PORTS (FRONT)
2(Gen 2, Type A), 2(Gen 1, Type A) x USB 3.2 PORTS (REAR)
4 x USB 2.0 PORTS (FRONT)
2 x USB 2.0 PORTS (REAR)
1 x SERIAL PORTS(FRONT)
Realtek® ALC897 Codec x AUDIO PORTS (REAR)
2 x DISPLAYPORT
2 x HDMI
12 x DIRECTX

LAN / Wireless

1x Realtek® RTL8125BG 2.5Gbps LAN controller

Kích cỡ

MATX

1866/ 2133/ 2400/ 2667/ 2800/2933 /3000 /3066 /3200 /3466 /3600 /3733 /3866 /4000 /4133 /4266 /4400 /4533 / 4600/ 4733/ 4866/ 5000/ 5100 Mhz by JEDEC and A-XMP OC MODE

RYZEN 9

2

AMD X570 Chipset

Dual

1(Gen 2, Type C), 4(Gen 1, Type A)

4

3(Gen 2, Type A),1(Gen 2,Type C), 2(Gen 1, Type A)

128

2

2

6

4

0/1/10

1x Realtek® 8125B 2.5Gbps LAN Controller
1x Realtek® RTL8111H 1Gbps LAN Controller

2

5+ Optical S/PDIF (Realtek® ALC4080 Codec)

1

12

ATX

Y

Support for Windows® 10 64-bit

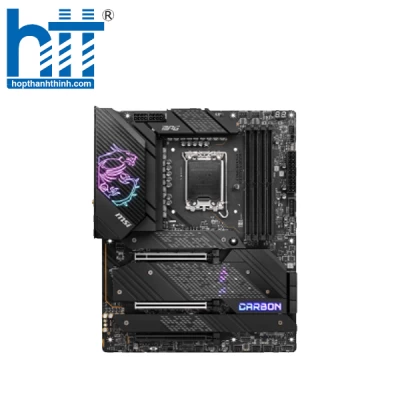

Sản phẩm

Bo mạch chủ

Tên Hãng

MSI

Model

Z690 CARBON WIFI

CPU hỗ trợ

Intel

Chipset

Z690

RAM hỗ trợ

4x DDR5 memory slots, support up to 128GB1
Supports 1R 4800 MHz (by JEDEC & POR)
Max. overclocking frequency:
1DPC 1R Max speed up to 6666+ MHz
1DPC 2R Max speed up to 5600+ MHz
2DPC 1R Max speed up to 4000+ MHz
2DPC 2R Max speed up to 4000+ MHz
Supports Intel® XMP 3.0 OC
Supports Dual Controller Dual-Channel mode
Supports non-ECC, un-buffered memory

Khe cắm mở rộng

3x PCIe x16 slots
PCI_E1 & PCI_E2 slots (From CPU)
Support PCIe 5.0
Support x16/ x0, x8/ x8
PCI_E3 slot (From Z690 Chipset)
Supports PCIe 3.0 x4

Ổ cứng hỗ trợ

4x SATA 6Gb/s ports - SATA5~8* (From Z690 Chipset)1
2 x SATA 6Gb/s ports - SATAA & SATAB (From ASMedia ASM1061)
5x M.2 slots (Key M)
M2_1 slot (From CPU)
Supports PCIe 4.0 x4

Sản phẩm

Bo mạch chủ

Tên Hãng

MSI

Model

Pro X670-P Wifi

CPU hỗ trợ

AMD

Chipset

X670

RAM hỗ trợ

4x DDR5, Maximum Memory Capacity 128GB
Memory Support DDR5 6600+(OC)/6400(OC)/ 6200(OC)/6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz
Max. overclocking frequency:
• 1DPC 1R Max speed up to 6600+ MHz
• 1DPC 2R Max speed up to 6000+ MHz
• 2DPC 1R Max speed up to 6400+ MHz
• 2DPC 2R Max speed up to 4000+ MHz

Khe cắm mở rộng

3x PCI-E x16 slot

1x PCI-E x1 slot

Ổ cứng hỗ trợ

4x M.2 slot
M.2_1 (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280 devices
M.2_2 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_3 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_4 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
6x SATA 6G port

Cổng kết nối (Internal)

1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
6x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Tuning Controller connector(JDASH)
2x Addressable V2 RGB LED connector (JARGB_V2)
2x RGB LED connector(JRGB)
4x USB 2.0
4x USB 3.2 Gen1 Type A
1x USB 3.2 Gen2 Type C

BACK PANEL

1. DisplayPort
2. USB 3.2 Gen 2 10Gbps (Type-A)
3. USB 3.2 Gen 1 5Gbps (Type-A)
4. 2.5G LAN
5. Wi-Fi / Bluetooth
6. Audio connectors
7. Flash BIOS Button
8. HDMI™
9. USB 3.2 Gen 2 10Gbps (Type-C Display port)
10. USB 3.2 Gen 2x2 20Gbps (Type-C)
11. USB 3.2 Gen 2 10Gbps (Type-A)
12. S/PDIF-OUT

LAN / Wireless

Realtek^® RTL8125BG 2.5G LAN

AMD Wi-Fi 6E Supports Bluetooth^® 5.2

Kích cỡ

ATX
243.84mmx304.8mm

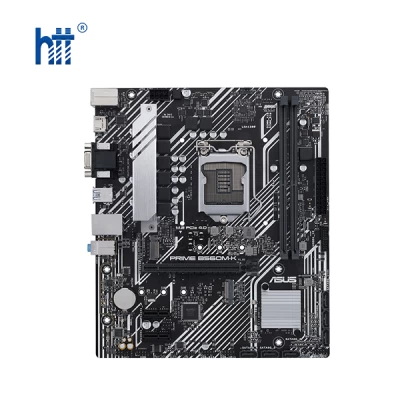

Sản phẩm

Bo mạch chủ

Tên Hãng

ASUS

Model

PRIME B560M-K

CPU hỗ trợ

Hỗ trợ cho thế hệ thứ 10&11 Intel® Core Socket LGA1200

Chipset

B560

RAM hỗ trợ

2 x DDR4 DIMM Slots ( tối đa 64GB )
Supports DDR4 5000(OC)/4800(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC) 3200(OC)/2933/2800/2666 / 2400 / 2133 non-ECC, un-buffered memory

Khe cắm mở rộng

1 x PCI Express 4.0/3.0 x16 Slot
1 x PCI Express 3.0 x16 Slot

1 x PCI Express 3.0 x1 Slot

Ổ cứng hỗ trợ

6 x SATA3 6.0 Gb/s Connectors

Cổng kết nối (Internal)

1 x 4-pin CPU Fan header

1 x 4-pin Chassis Fan header

1 x 24-pin Main Power connector

1 x 8-pin+12V Power connector

2 x M.2 slots (Key M)

6 x SATA 6Gb/s ports

1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports

2 x USB 2.0 headers support additional 4 USB 2.0 ports

1 x RGB header

1 x Clear CMOS header

1 x COM Port header

1 x Front Panel Audio header (AAFP)

1 x S/PDIF Out header

1 x Speaker header

1 x SPI TPM header (14-1pin)

1 x 10-1 pin System Panel header

Cổng kết nối (Back Panel)

4 x USB 3.2 Gen 1 ports (4 x Type-A)

2 x USB 2.0 ports (2 x Type-A)

1 x D-Sub port

1 x HDMI™ port

1 x Intel® I219-V 1Gb Ethernet

3 x Audio jacks

1 x PS/2 Keyboard/Mouse combo port

LAN / Wireless

1 x Intel® I219-V 1Gb Ethernet

Kích cỡ

Micro ATX Form Factor: 9.6 inch x 8.3 inch (24.4cm x 21.1cm)

CPU (HỖ TRỢ TỐI ĐA)

i9

SOCKET

1700

CHIPSET

Bộ chip Intel® B660

BỘ NHỚ DDR4

4800 (OC) / 4600 (OC) / 4400 (OC) / 4266 (OC) / 4200 (OC) / 4000 (OC) / 3800 (OC) / 3733 (OC) / 3600 (OC) / 3466 (OC) / 3400 (OC) / 3333 (OC) / 3200 (OC) / 3200 (JEDEC) / 2933 (JEDEC) / 2666 (JEDEC) / 2400 (JEDEC) / 2133 (JEDEC) MHz

KÊNH BỘ NHỚ

Hai

DIMM SLOTS

4

MAX MEMORY (GB)

128

PCI-E X16

2

PCI-E X1

1

SATAIII

6

M.2 SLOT

2

RAID

0/1/5/10

LAN

1x mạng LAN Realtek® 8125BG 2.5G

WIFI & BLUETOOTH

Mô-đun Intel® Wi-Fi 6E

CỔNG USB 3.2 (TRƯỚC)

1 (Thế hệ 2, Loại C), 2 (Thế hệ 1, Loại A)

CỔNG USB 3.2 (REAR)

1 (Thế hệ 2 × 2, Loại C), 3 (Thế hệ 2, Loại A)

CỔNG USB 2.0 (TRƯỚC)

4

Sản phẩm

Bo mạch chủ

Tên Hãng

MSI

Model

Z690-A PRO

CPU hỗ trợ

Intel

Chipset

Z690

RAM hỗ trợ

4x DDR4 memory slots, support up to 128GB

Cổng kết nối (Internal)

1x 24-pin ATX main power connector
1x 8-pin ATX 12V power connector
1x 4-pin ATX 12V power connector
1x 6-pin ATX PCIe power connector
6x SATA 6Gb/s connectors
3x M.2 slots (M-Key)
1x USB 3.2 Gen 2 10Gbps Type-C port
2x USB 3.2 Gen 1 5Gbps connectors (supports additional 4 USB 3.2 Gen 1 5Gbps ports)
2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
1x 4-pin CPU fan connector
1x 4-pin water-pump fan connector
6x 4-pin system fan connectors
1x Front panel audio connector
2x System panel connectors
1x Chassis Intrusion connector
1x Clear CMOS jumper
1x TPM module connector
1x Serial port connector
1x Tuning controller connector
1x TBT connector (Supports RTD3)

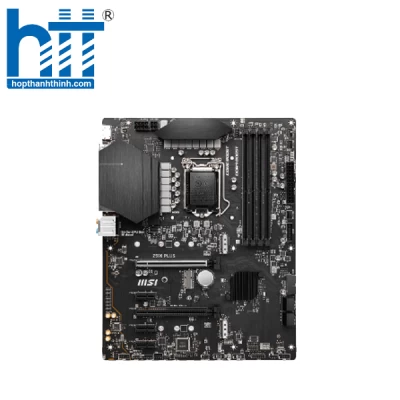

MSI

MSI MAG Z590 Plus

ATX

LGA1200

Z590

4

5333(OC)/ 5200(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/ 4533(OC)/ 4400(OC)/ 4300(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC) MHz

128GB

2

3

0/1/5/10

Supports S/PDIF output (Realtek® ALC4080)

1x Intel® I225-V 2.5G LAN

MSI

Z690-A WiFi

ATX

Intel® Z690 Chipset

4

5200(OC)/ 5066(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC) MHz

128GB

Dual chanel

3x PCIe x16 slots

1x PCIe 3.0

6x SATA 6Gb/s ports

4x M.2 slots

Supports RAID 0, RAID 1, RAID 5 and RAID

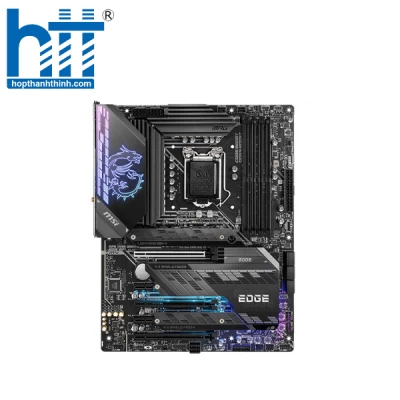

Tên Hãng

MSI

Model

Z590 GAMING EDGE WIFI

CPU hỗ trợ

Intel

Chipset

Z590

RAM hỗ trợ

4x DDR4 memory slots, support up to 128GB
Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel® CPU (by JEDEC & POR)
Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel® CPU (by JEDEC & POR)
Max overclocking frequency:
1DPC 1R Max speed up to 5333 MHz
1DPC 2R Max speed up to 4700+ MHz
2DPC 1R Max speed up to 4400+ MHz
2DPC 2R Max speed up to 4000+ MHz
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel® Extreme Memory Profile (XMP)

Khe cắm mở rộng

2x PCIe x16 slots
1x PCIe 3.0 x16 slot (from CPU)
Support up to PCIe 4.0 for 11th Gen Intel® CPU
Support up to PCIe 3.0 for 10th Gen Intel® CPU
PCI_E3 (From Z590 chipset)
Support up to PCIe 3.0 x
2x PCIe 3.0 x1 slots (From Z590 chipset)

Ổ cứng hỗ trợ

6x SATA 6Gb/s ports (From Z590 chipset)
3x M.2 slots (Key M)

Sản phẩm

Main - Bo mạch chủ

Tên Hãng

MSI

Model

CPU hỗ trợ

AM4 socket 3rd Gen AMD Ryzen™ processors, và CPU AMD Ryzen™

tương lai bằng cách nâng cấp BIOS.

Chipset

AMD B550 Chipset

RAM hỗ trợ

4x DDR4 memory slots, hỗ trợ lên tới 128GB

Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066

/ 3200 MHz by JEDEC

Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866

/4000 /4133 /4266/  4400+ MHz by A-XMP OC MODE

1DPC 1R max speed 4400 MHZ

1DPC 2R max speed 3733 MHZ

2DPC 1R max speed 3866MHZ

2DPC 2R max speed 3466 MHZ

Dual channel memory architecture

Supports non-ECC UDIMM memory

Supports ECC UDIMM memory (non-ECC mode)

Supports un-buffered memory

Cổng xuất hình onboard

1x VGA port, supports resolution of 2048x1536 @50Hz, 2048x1280 @60Hz,

 1920x1200 @60Hz

1x DisplayPort, supports a maximum resolution of 4096x2160 @60Hz

1x HDMI 2.1 port, supports a maximum
