Sản phẩm
Bo mạch chủ
Tên Hãng
MSI
Model
B560M PRO-E
CPU hỗ trợ
Intel
Chipset
B560
RAM hỗ trợ
2x DDR4 memory slots, support up to 64GB Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel® CPU (by JEDEC & POR) Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel® CPU (by JEDEC & POR) Max overclocking frequency: 1DPC 1R Max speed up to 4800 MHz 1DPC 2R Max speed up to 4600+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel® Extreme Memory Profile (XMP)
Khe cắm mở rộng
1x PCIe x16 slot (From CPU) Support up to PCIe 4.0 for 11th Gen Intel® CPU Support up to PCIe 3.0 for 10th Gen Intel® CPU 1x PCIe 3.0 x1 slot (From PCH)
Ổ cứng hỗ trợ
4x SATA 6Gb/s ports (From B560 Chipset) 1x M.2 slot (Key M) M2_1 slot (From B560 Chipset) Supports up to PCIe 3.0 x4 Supports 2242/ 2260/ 2280 storage devices

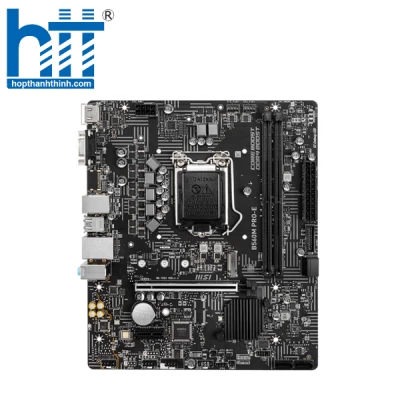

Mainboard MSI B560M PRO-E
Hỗ trợ 10th Gen Intel® Core™ Processors, 11th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors
Ổ cắm bộ xử lý LGA1200
Hình ảnh
Cổng 1x VGA, hỗ trợ độ phân giải tối đa 2048x1536 @ 50Hz, 2048x1280 @ 60Hz, 1920x1200 @ 60Hz 1 2 1 cổng DisplayPort 1.4, hỗ trợ độ phân giải tối đa 4K 60Hz 1 2 1x HDMI 2.0b với cổng HDR, hỗ trợ độ phân giải tối đa 4K 60Hz
Chỉ khả dụng trên các bộ xử lý có đồ họa tích hợp. Thông số kỹ thuật đồ họa có thể khác nhau tùy thuộc vào CPU được cài đặt.
Âm Thanh
Mainboard MSI B560M PRO
Main - Bo mạch chủ
AM4 socket 3rd Gen AMD Ryzen™ processors, và CPU AMD Ryzen™
tương lai bằng cách nâng cấp BIOS.
AMD B550 Chipset
4x DDR4 memory slots, hỗ trợ lên tới 128GB
Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066
/ 3200 MHz by JEDEC
Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866
/4000 /4133 /4266 /4400+ MHz
by A-XMP OC MODE
1DPC 1R max speed 4400 MHZ
1DPC 2R max speed 3733 MHZ
2DPC 1R max speed 3866 MHZ
2DPC 2R max speed 3466 MHZ
Dual channel memory architecture
Supports non-ECC UDIMM memory
Supports ECC UDIMM memory (non-ECC mode)
Supports un-buffered memory
Cổng xuất hình onboard
1x VGA port, hỗ trợ 2048x1536 @50Hz, 2048x1280 @60Hz,
1920x1200 @60Hz
1x DisplayPort, hỗ trợ 4096x2160 @60Hz
1x HDMI 2.1 port, hỗ trợ 4096x2160 @60Hz1x
Mainboard MSI B550M PRO-VDH WIFI
Hỗ trợ cho thế hệ thứ 10 Intel® Core Socket LGA1200
Intel® B460 Express Chipset
4 x DDR4 DIMM socket hỗ trợ lên đến 128 GB (32GB / DIMM )
Hỗ trợ bộ nhớ DDR4 2933(Max)/ 2666/ 2400/ 2133 MHz
1x HDMI port, supports a maximum resolution of 4096x2160 @30Hz
1x DisplayPort, supports a maximum resolution of 4096x2304 @60Hz
Realtek® ALC1200 Codec
7.1-Channel High Definition Audio
Supports S/PDIF output
LAN
1x Realtek® RTL8125B 2.5Gbps LAN controller
1x Intel® I219V 1Gbps LAN controller
1x PCIe 3.0 x16 slot (From CPU, PCI_E1), supports x16 mode
1x PCIe 3.0 x16 slot (From PCH, PCI_E3), supports x4 mode
2x PCIe 3.0 x1 slots (From PCH)
PCI_E3 sẽ khả dụng khi lắp đặt M.2 SSD tại M2_2 slot.

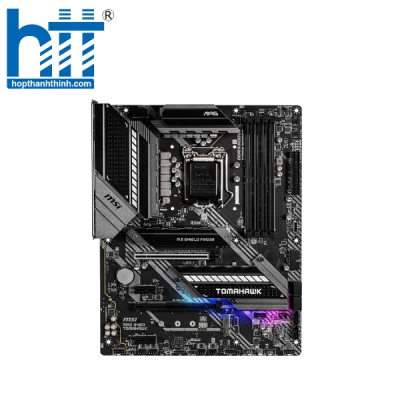

Mainboard MSI MAG B460 TOMAHAWK
PRO Z690-P DDR4
Z690
4 x DIMM SLOTS (tối đa 128GB)
5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC) MHz
2 x PCI-E X16, 3 x PCI-E X1
4 x SATAIII, 2 x M.2 SLOT, 0/1/5/10 x RAID
Cổng kết nối (Internal)
4(Gen 1, Type A) x USB 3.2 PORTS (FRONT)
1(Gen 2x2, Type C), 4(Gen 1, Type A) x USB 3.2 PORTS (REAR)
4 x USB 2.0 PORTS (FRONT)
2 x USB 2.0 PORTS (REAR)
Realtek® ALC897 Codec x AUDIO PORTS (REAR)
1 x DISPLAYPORT
1 x HDMI
12 x DIRECTX
LAN / Wireless
Realtek® RTL8125BG 2.5Gbps LAN controller
Kích cỡ
ATX
Mainboard MSI PRO Z690-P
Mainboard MSI B450M Mortar Max

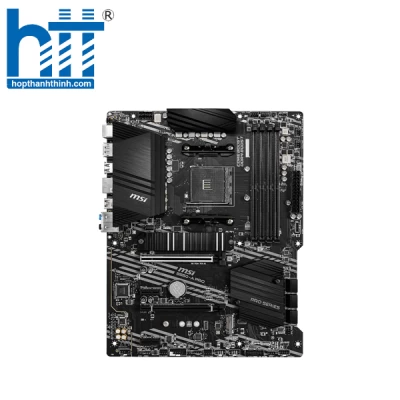

MAINBOARD MSI B550-A PRO
Z590 TOMAHAWK WIFI
Z590
4x DDR4 memory slots, support up to 128GB Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel® CPU (by JEDEC & POR) Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel® CPU (by JEDEC & POR) Max overclocking frequency: 1DPC 1R Max speed up to 5333 MHz 1DPC 2R Max speed up to 4700+ MHz 2DPC 1R Max speed up to 4400+ MHz 2DPC 2R Max speed up to 4000+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel® Extreme Memory Profile (XMP)
2x PCIe x16 slots 1x PCIe 3.0 x16 slot (from CPU) Support up to PCIe 4.0 for 11th Gen Intel® CPU Support up to PCIe 3.0 for 10th Gen Intel® CPU PCI_E3 (From Z590 chipset) Support up to PCIe 3.0 x4 2x PCIe 3.0 x1 slots (From Z590 chipset)
6x SATA 6Gb/s ports (From Z590 chipset) 3x M.2 slots (Key M) M2_1 slot (From CPU)
Mainboard MSI MAG Z590 TOMAHAWK WIFI
1x HDMI port, supporting a maximum resolution of 4096x2160 @ 30Hz, 2560x1600 @ 60Hz
1x DVI-D port, supports a maximum resolution of 1920x1200 @ 60Hz
Realtek® ALC892 Codec
1x Realtek® RTL8111H Gigabit LAN Controller
1x PCIe 3.0 x16 slot (from CPU)
2x PCIe x1 slots (from PCH)
Mainboard MSI MAG B460M BAZOOKA
H310M GAMING PLUS
intel
H310M
2 x DDR4 memory slots, support up to 32GB DDR4 2666/ 2400/ 2133 MHz
1 x PCI-E X16, PCI-E GEN, 2 x PCI-E X1
4 x SATAIII, 1 x M.2 SLOT
10/100/1000*1
m-ATX
Mainboard MSI H310M GAMING PLUS
Z590 GAMING CARBON WIFI
3x PCIe x16 slots Support x16/x0/x4, x8/x8/x4, x8/x4+x4/x4 PCI_E1 & PCI_E3 slots (From CPU) Support PCIe 4.0 for 11th Gen Intel® CPU Support PCIe 3.0 for 10th Gen Intel® CPU PCI_E5 slot (From Z590 Chipset) Supports PCIe 3.0 2x PCIe 3.0 x1 slots (From Z590 Chipset)
6x SATA 6Gb/s ports (From Z590 Chipset) 3x M.2 slots (Key M) M2_1 slot (From CPU) Available only on 11th Gen Intel® CPU
Mainboard MSI Z590 GAMING CARBON WIFI
4x DDR4 memory slots, support up to 128GB
Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC
Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866/4000 /4133 /4266 /4400 /4533 /4600 /4733 /4800 /4866 /5000 /5100+ MHzby A-XMP OC MODE
1DPC 1R max speed 5100 MHZ
1DPC 2R max speed 3866 MHZ
2DPC 1R max speed 4000 MHZ
2DPC 2R max speed 3600 MHZ
1x HDMI port, supports a maximum resolution of 4096x2160 @24Hz
1x DisplayPort, supports a maximum resolution of 4096x2160 @60Hz

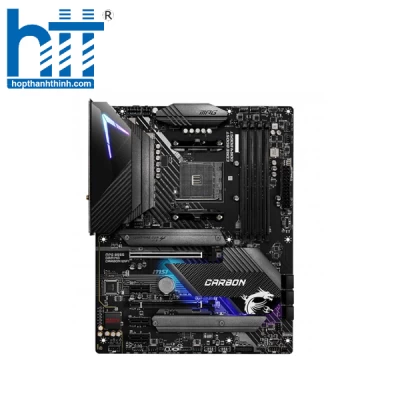

Mainboard MSI MPG B550 GAMING CARBON WIFI
Mainboard MSI B450M PRO VDH MAX

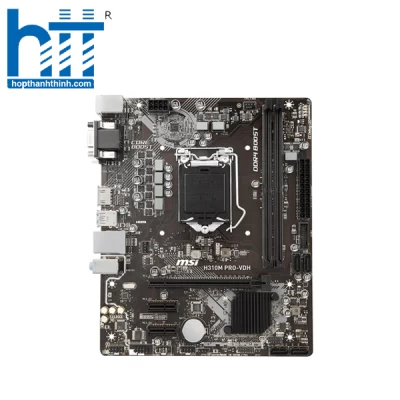

MSI H310M PRO-VDH PLUS
MAG B560M BAZOOKA
4x DDR4 memory slots, support up to 128GB Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel® CPU (by JEDEC & POR) Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel® CPU (by JEDEC & POR) Max overclocking frequency: 1DPC 1R Max speed up to 5066 MHz 1DPC 2R Max speed up to 4600+ MHz 2DPC 1R Max speed up to 4266+ MHz 2DPC 2R Max speed up to 4000+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel® Extreme Memory Profile (XMP)
1x PCIe x16 slot PCI_E1 (from CPU) Support up to PCIe 4.0 for 11th Gen Intel® CPU Support up to PCIe 3.0 for 10th Gen Intel® CPU 2x PCIe 3.0 x1 slots PCI_E2 & PCI_E3 (From B560 chipset)
6x SATA 6Gb/s ports (from B560 chipset) 2x M.2 slots (Key M) M2_1 slot Supports up to PCIe 4.0 x4 for 11th Gen Intel® CPU(From CPU) Supports up to PCIe 3.0 x4 & SATA 6Gb/s for 10th Gen Intel® CPU (From B560 chipset) Supports 2242/ 2260/ 2280 storage devices M2_2 slot2(from B560 chipset) Supports up to PCIe 3.0 x4 Supports 2242/ 2260/ 2280 storage devices
1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 6x SATA 6Gb/s connectors 2x M.2 slots (M-Key) 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB Gen 1 ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 2x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x Clear CMOS jumper 1x TPM module connector 1x Serial port connector 1x Tuning Controller connector
Cổng kết nối (Back Panel)
1 x HDMI 1 x PS2 1 x LAN port 1 x Audio connector 2 x USB 2.0 1 x DP 2 x USB 3.2 Gen 1 5Gbps Type A 2 x USB 3.2 Gen 2 10Gbps Type A
Micro-ATX Form Factor 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)

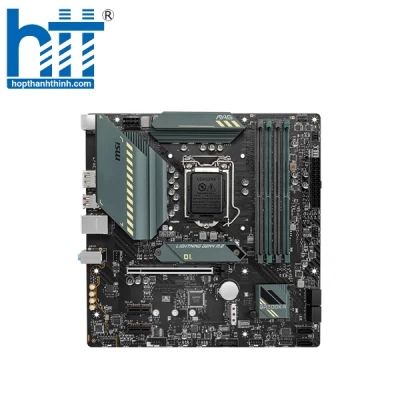

Mainboard MSI MAG B560M BAZOOKA
1x Realtek® RTL8125B 2.5G LAN Controller
Wireless
Intel® AX200
Supports 802.11 a/b/g/n/ac/ax, MU-MINO Rx, 2.4GHz-5GHz (160MHz) up to 2.4Gbps
WiFi 6 Pre-Certified
Supports Bluetooth® 5.1 , FIPS, FISMA
The Wireless module is pre-install in the M2 (Key-E) slot
Chỉ hỗ trợ Windows 10 64-bit
* Tốc độ dữ liệu thực tế có thể thay đổi tùy thuộc vào môi trường và thiết bị.
1x PCIe 3.0 x16 slot (from PCH， supports x4 mode)
1x PCIe 3.0 x1 slot (from PCH)

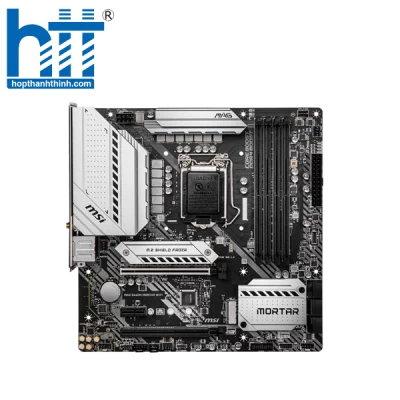

Mainboard MSI MAG B460M MORTAR WIFI
MAINBOARD MSI MEG Z490I UNIFY
MEG Z590 GODLIKE
4x DDR4 memory slots, support up to 128GB Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel® CPU (by JEDEC & POR) Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel® CPU (by JEDEC & POR) Max overclocking frequency: 1DPC 1R Max speed up to 5600 MHz 1DPC 2R Max speed up to 4800+ MHz 2DPC 1R Max speed up to 4400+ MHz 2DPC 2R Max speed up to 4000+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel® Extreme Memory Profile (XMP)
3x PCIe x16 slots Support x16/x0/x4, x8/x8/x4, x8/x4+x4/x4, x8+x8/x0/x4, x8+(x4+x4)/x0/x4 PCI_E1 & PCI_E2 slots (From CPU) Support up to PCIe 4.0 for 11th Gen Intel® CPU Support up to PCIe 3.0 for 10th Gen Intel® CPU PCI_E3 slot (From Z590 chipset) Supports up to PCIe 3.0
6x SATA 6Gb/s ports (From Z590 chipset) 4x M.2 slots (Key M)
Mainboard MSI MEG Z590 GODLIKE
1x PCIe 3.0 x16 slot (from PCH, supports x4 mode)
Mainboard MSI MAG B460M MORTAR
Mainboard - Bo mạch chủ
MAG Z490 TOMAHAWK
Supports 10th Gen Intel® Core™ and Pentium® Gold / Celeron® processors for LGA1200 socket
Intel® Z490 Chipset
4 x DDR4 memory slots, support up to 128GB
Supports 1R 2133/2666/2933 MHz
1DPC 1R Max speed up to 4800+ MHz
1DPC 2R Max speed up to 4266+ MHz
2DPC 1R Max speed up to 4400+ MHz
2DPC 2R Max speed up to 4000+ MHz
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel® Extreme Memory Profile (XMP)
Cổng xuất hình ( ONBOARD GRAPHICS )
1x HDMI port, supports a maximum resolution of 4096x2160 @ 30Hz
1x DisplayPort port supports a maximum resolution of 4096 x 2304 @ 60Hz

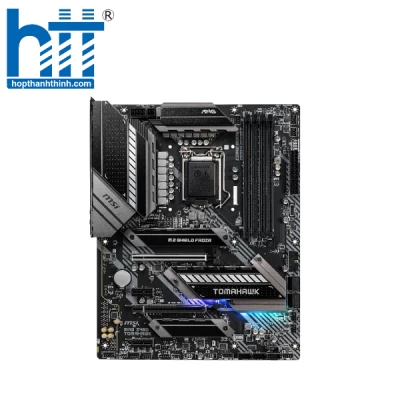

Mainboard MSI MAG Z490 TOMAHAWK
